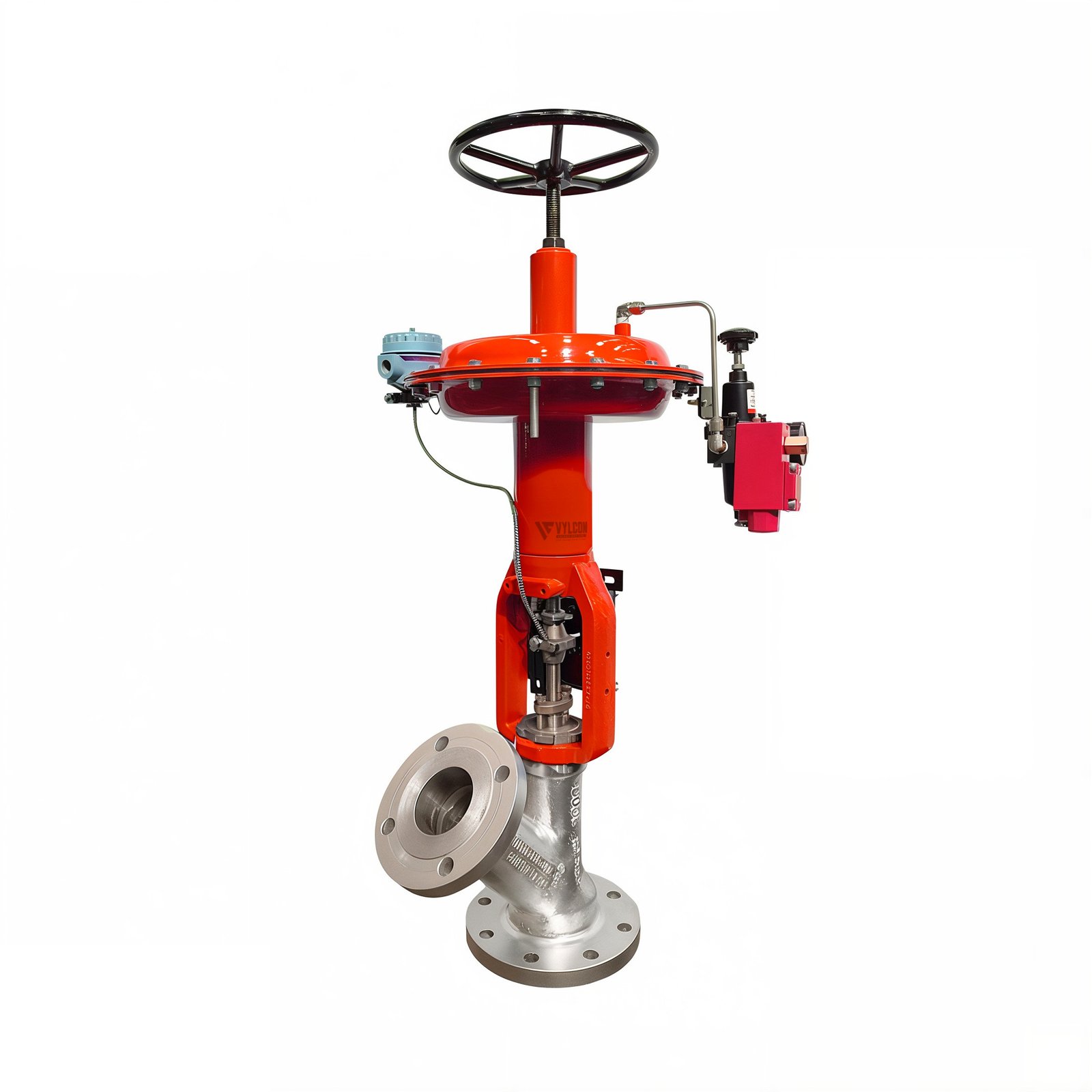

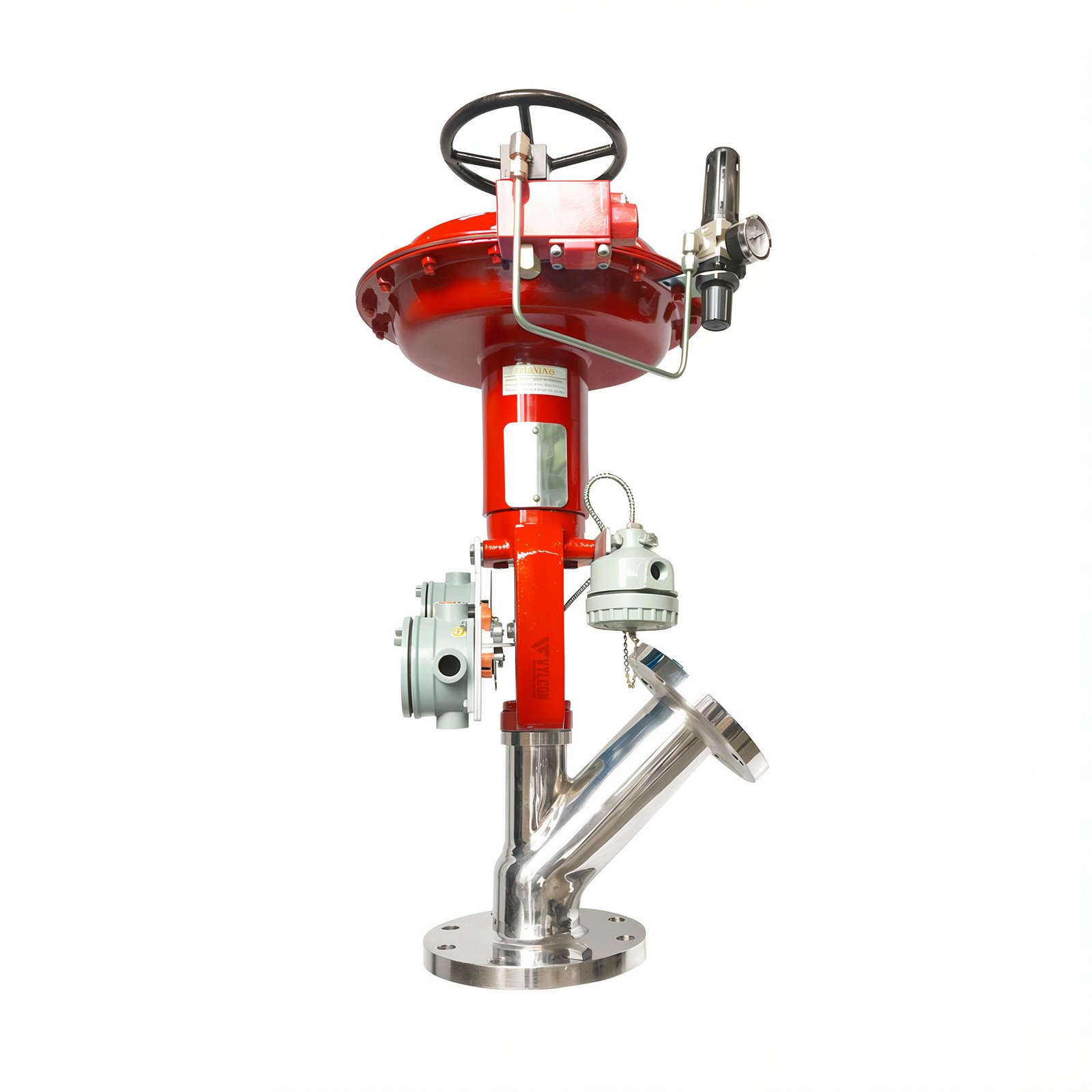

Pneumatic Flush Bottom Valve
Vylcon Valves Pvt. Ltd.’s Pneumatic Flush Bottom Valve is designed to effectively and dependably release bulk solids, slurries, and other dense or viscous liquids from tanks or vessels. By ensuring thorough and clean drainage, this valve reduces residue and preserves maximum operational efficiency. It is perfect for a variety of industrial applications where thorough and clean emptying is essential because of its pneumatic actuation, which offers accurate control and quick operation.
Pneumatic Flush Bottom Valve
Technical Specifications
- DESIGN STANDARD: Plug Type
- VALVE SIZE: 1/2" to 14" (15MM - 350MM)
- PRESSURE RATING: 150# to 300# other standards are available on request
- OPENING: Vessel Opening, Opening inside valve
- MATERIAL: Fabricated in Carbon Steel, SS 304, SS 316, SS 304L, SS 316L, Alloy 20, Hastelloy and as per Special Specifications.
- DESIGN TEMPERATURE: -20°C to 280°C
Pneumatic Flush Bottom Valve
Construction and Build
- BODY: Durable materials (stainless steel, carbon steel), globe-shaped for efficient flow control.
- TRIM ASSEMBLY: Valve Seat: Precision-machined for tight sealing, Plug: Adjustable for smooth flow control, Stem: Connects plug to actuator for precise adjustments.
- ACTUATOR: Pneumatic diaphragm or piston type, made from robust materials for reliable operation.
- POSITIONER: Ensures accurate valve position based on control signals.
- MANUAL OVERRIDE: Allows manual adjustment if pneumatic power fails.
- SEALS AND GASKETS: High-quality elastomers or PTFE for leak-proof performance.
- MOUNTING FLANGES: Standard sizes for easy integration.
Pneumatic Flush Bottom Valve
Product Features
Effective Drainage: Designed to minimize residue and guarantee efficient cleaning by allowing the full and complete discharge of bulk solids, slurries, and fluids from the bottom of tanks or containers.
Pneumatic Actuation: For dependable and accurate control, use pneumatic actuators (piston or diaphragm kinds). High cycle durability and quick response times make pneumatic actuation ideal for automated and high-frequency applications.
Robust Construction: The valve is made to withstand high pressures, corrosive conditions, and extreme temperatures since it is constructed from premium materials like stainless steel or alloy materials. This ensures long-term performance and reliability.
Sealing Technology: Using cutting-edge sealing materials like PTFE or elastomers to keep a tight seal even in the most trying circumstances and stop leaks. This guarantees reliable and efficient operation.
High Flow Capacity: This type of pump has a big flow area and an effective design that can handle viscous fluids and high flow rates while minimizing pressure drop and improving system performance.
User-Friendly Design: For simple operation and monitoring, its design incorporates position indications and intuitive controls. Operational efficiency is improved by optional accessories including feedback systems and limit switches.
Compact and Space-Efficient: The valve’s small size makes it possible to install it in tight areas while maintaining strong performance and efficient drainage.
Maintenance-Friendly: Featuring easily accessible components and simple servicing protocols, this product is made to be easily maintained and cleaned.
Pneumatic Flush Bottom Valve
Unique Selling Points (USP)
Precise pneumatic actuation, sturdy construction, and effective drainage capabilities are the main features of the Vylcon Pneumatic Flush Bottom Valve. It is a dependable option for demanding industrial applications due to its sophisticated sealing technology and capacity to handle viscous fluids and high flow rates. The valve’s characteristics that make maintenance easier and its user-friendly design make it even more appealing.
This premium Pneumatic Flush Bottom Valve is proudly made and exported by Vylcon Valves Pvt Ltd, which combines cutting-edge engineering and exquisite craftsmanship to satisfy the various demands of global industries.
Pneumatic Flush Bottom Valve
Product Application
Chemical Processing: Enables efficient discharge of corrosive chemicals and slurries from reactors and tanks, ensuring safe and thorough cleaning.
Oil and Gas Industry: Manages the discharge of heavy fluids and slurries from storage tanks and separators, improving operational efficiency and safety.
Water and Wastewater Treatment: Facilitates the complete emptying of sediment and sludge from treatment tanks and vessels, ensuring effective system operation.
Food and Beverage Industry: Provides clean and efficient drainage of bulk materials and viscous fluids from processing vessels, supporting hygiene and product quality.
Pharmaceutical Industry: Allows for precise discharge of valuable or sensitive materials, ensuring minimal residue and contamination.
Pneumatic Flush Bottom Valve
FAQ's Pneumatic Flush Bottom Valve
The bottom of a tank or vessel can be fully emptied or flushed out using a pneumatic flush bottom valve. The valve’s opening and shutting to permit the discharge of leftover materials or liquids is controlled by a pneumatic actuator.
The valve’s disc or gate is moved by a pneumatic actuator, which allows the valve to open or close. When the valve is open, the bottom materials of a tank or vessel can be flushed out. The actuator regulates the valve’s position with compressed air to provide a reliable and efficient discharge.
Typically, pneumatic flush bottom valves are made of the following materials:
Stainless steel: For tough applications requiring resistance to corrosion.
Brass: For affordability and robustness in milder conditions.
Plastic: For uses requiring resistance to chemicals and light weight.
Carbon steel: For applications requiring high strength and cost efficiency.
Take into account the following elements:
Size and Flow Capacity: Verify that the valve size satisfies your system’s discharge specifications.
Material Compatibility: Select materials that are appropriate for the working environment and the contents being flushed.
Verify that the valve can withstand the operating conditions of your system by looking at its pressure and temperature ratings.
Choose the type of actuator you want.
Typical upkeep consists of:
Inspection: Continually check for wear, leaks, and appropriate functioning.
Clear out any buildup or debris that might have an impact on the functionality of the valve.
Lubrication: When necessary, lubricate the actuator and its moving parts.
Testing: Verify that the valve functions properly and adjust its calibration if needed.
Yes, but only if you choose an actuator and valve that are approved for high temperatures. Make that the valve’s materials are appropriate for the temperature range in which it will be utilized.
In contrast to alternative valves, a flush bottom pneumatic valve provides:
Full Discharge: guarantees that the bottoms of tanks are completely emptied.
Automatic Operation: Using pneumatic actuation, this method offers accurate and effective control.
Enhanced Cleaning: Makes tank and vessel maintenance and cleaning easier.
One of the top producers and exporters of premium pneumatic flush bottom valves is Vylcon Valves Pvt Ltd. Contact us now for dependable and efficient valve solutions that are customized to meet your needs.
